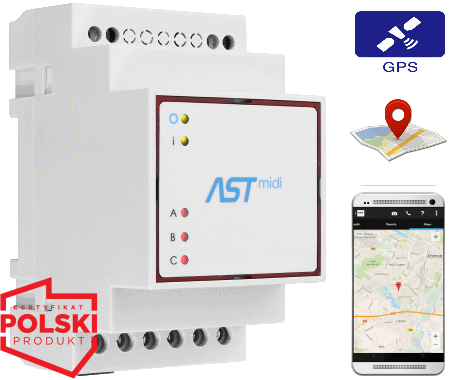

ASTmidi GPS

THE FIRST STREET LIGHTING DRIVER ON THE MARKET WITH BUILT-IN GPS ANTENNA

Controller of street lighting. First on the market street lighting driver with built-in GPS antenna. AST Sytem is revolutionizing the market by introducing a driver that is very simple to install, no need to worry about how and where to install the antenna. Simply connect the power supply, switches and you can be sure that the lighting will be switched on with GPS precision.

BUY PRODUCT

ASTmidi GPS properties

  • full control and management of ASTmidi GPS via phone, smartphone, tablet from ASTmobile application
  • intuitive application interface for easy entry of driver settings
  • free ASTmobile application (to download from GooglePlay)
  • Bluetooth encrypted communication
  • automatic calculation of corrections for the lighting control location
  • own amendments in the range of / – 240 minutes
  • time synchronization according to GPS signal
  • automatic time change (summer/winter)
  • astronomical switch-on and switch-on times calculated from the GPS position or taken from a table
  • built-in attachment table, possibility of editing its contents and reloading to the controller, work wirelessly.
  • automatic driver location on the ASTmobile application map
  • independent, programmable outputs for lighting control. Possibility of entering up to 4 switching intervals, for each day of the week
  • possibility of entering 20 exceptional attachments (holidays, celebrations)
  • 3 modes of correction: summer/winter, quarters, months
  • service switches of outputs A, B, C (for 1/10/30 minutes and permanent)
  • registration of up to 600 last events: each switching on/off of output A, B, C; switching on/off of input “i”; loss/return of power supply
  • possibility of sending registered data via e-mail, MMS. Everything from the ASTmobile application level
  • possibility of saving the current configuration of the driver as a bank of settings and sending from the application level via e-mail, Bluetooth.
  • registration of working time of outputs A, B, C
  • cooperation with a photocell
  • cooperation with the cascade signal
  • simple exchange of software managing driver operation via Bluetooth from the ASTmobile application level
  • LEDs on the front panel indicating the status of outputs A, B, C, power supply and information input
  • blocking access to the driver by means of PIN code and one-day passwords
  • possibility of restoring factory settings



ASTmidi GPS technical parameters

  • supply voltage 230V AC / 50 Hz
  • supply voltage range – 20 % / 10 %
  • 2 or 3 outputs ( A ) ( B ) ( C ), independently programmable and controlled, 5 A / 230V AC
  • 1 input ( i ), photocell / cascade / information, 230V AC
  • mechanical parameters of connectors – contact / lift cable 2.5 mm2 / AWG14
  • 72 channel GPS receiver
  • sensitivity of GPS receiver -167 dBm
  • GPS antenna connector type SMA
  • battery life of 5 years (calculated without power supply voltage)
  • Bluetooth communication interface
  • encrypted bidirectional transmission
  • Degree of protection IP 20
  • operating temperature – 30 °C / 80 °C
  • dimensions – width 53 mm, height 95 mm, depth 58 mm
  • DIN rail mounting 35 mm

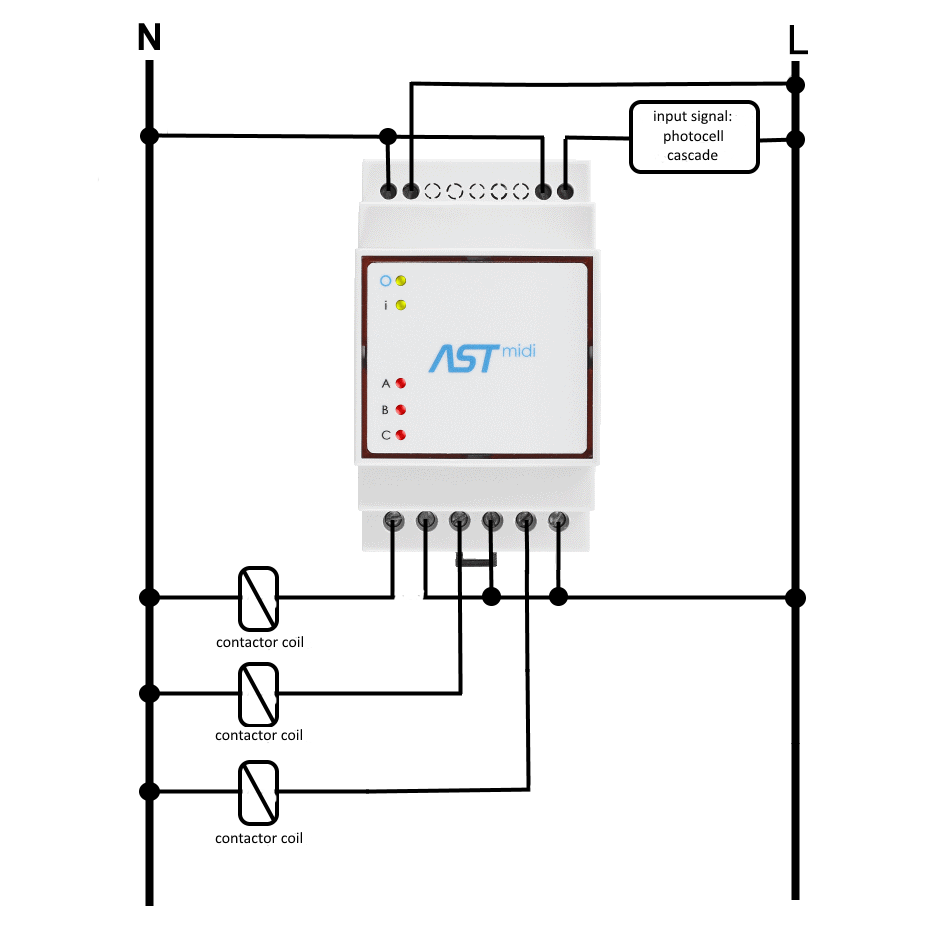

ASTmidi GPS connection diagram
