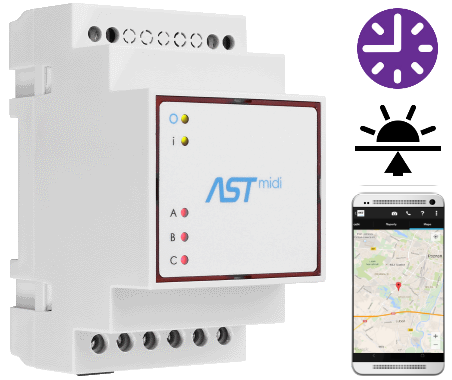

ASTmidi is a street lighting controller in a conventional 3-module wide DIN rail mounting housing. ASTmidi has 2 or 3 independent outputs, a photocell/cascade input and built-in Bluetooth. ASTmidi will calculate the optimal lighting control time based on the GPS position.
ASTmidi – lighting adapted to the season
Each AST controller is equipped with a precise real-time clock and the ability to synchronize time with the phone’s GPS settings, so that the lighting is switched on precisely, which translates into savings in lighting costs. AST controllers provide the ability to fine-tune lighting operation time depending on the season. AST series controllers are the first on the market to make adjustments to the switch on/off time for each month.

ASTmobile – a free application for controlling street lighting
ASTmobile supports all AST series drivers, including ASTmidi. ASTmobile is an application for your phone that will make working with the driver light and fast. You will find your AST directly from the car, without opening the cabinet and you will see how it is positioned. You can remotely read its time, attachment times, location on the map and much more data needed for immediate change or evaluation. The interface does not get in your way, it naturally guides you and gives you a sense of control over the whole. Working with the controller gives you a new approach to the problem of proper lighting setting. It makes every task more interesting now.
ASTmidi properties
- full control and management of ASTmidi via phone, smartphone, tablet from ASTmobile application
- intuitive application interface for easy entry of controller settings
- free ASTmobile application (to download from GooglePlay)
- Bluetooth encrypted communication
- automatic calculation of corrections for the lighting control location
- own amendments in the range of / – 240 minutes
- automatic time change (summer/winter)
- astronomical switch-on and switch-on times calculated from the GPS position or taken from a table
- built-in attachment table, possibility of editing its contents and reloading to the controller, all wirelessly
- automatic driver location on the ASTmobile application map
- independent, programmable outputs for lighting control. Possibility of entering up to 4 switching intervals, for each day of the week
- possibility of entering 20 exceptional attachments (holidays, celebrations)
- 3 modes of correction: summer/winter, quarters, months
- service switches of outputs A, B, C (for 1/10/30 minutes and permanent)
- registration of up to 600 last events: each switching on/off of output A, B, C; switching on/off of input “i”; loss/return of power supply
- possibility of sending registered data via e-mail, MMS. Everything from the ASTmobile application level
- possibility of saving the current configuration of the controller as a bank of settings and sending from the application level via e-mail, Bluetooth.
- registration of working time of outputs A, B, C
- cooperation with a photocell
- cooperation with the cascade signal
- simple exchange of software managing driver operation via Bluetooth from the ASTmobile application level
- LEDs on the front panel indicating the status of outputs A, B, C, power supply and information input
- blocking access to the controller by means of PIN code and one-day passwords
- possibility of restoring factory settings
ASTmidi technical parameters
- supply voltage 230V AC / 50 Hz
- supply voltage range – 20 % / 10 %
- 2 or 3 outputs ( A ) ( B ) ( C ), independently programmable and controlled, 5 A / 230V AC
- 1 input ( i ), photocell / cascade / information, 230V AC
- mechanical parameters of connectors – contact / lift cable 2.5 mm2 / AWG14
- battery life of 5 years (calculated without power supply voltage)
- Bluetooth communication interface
- encrypted bidirectional transmission
- Degree of protection IP 20
- operating temperature – 30 °C / 80 °C
- dimensions – width 53 mm, height 95 mm, depth 58 mm
- DIN rail mounting 35 mm
ASTmidi connection diagram
