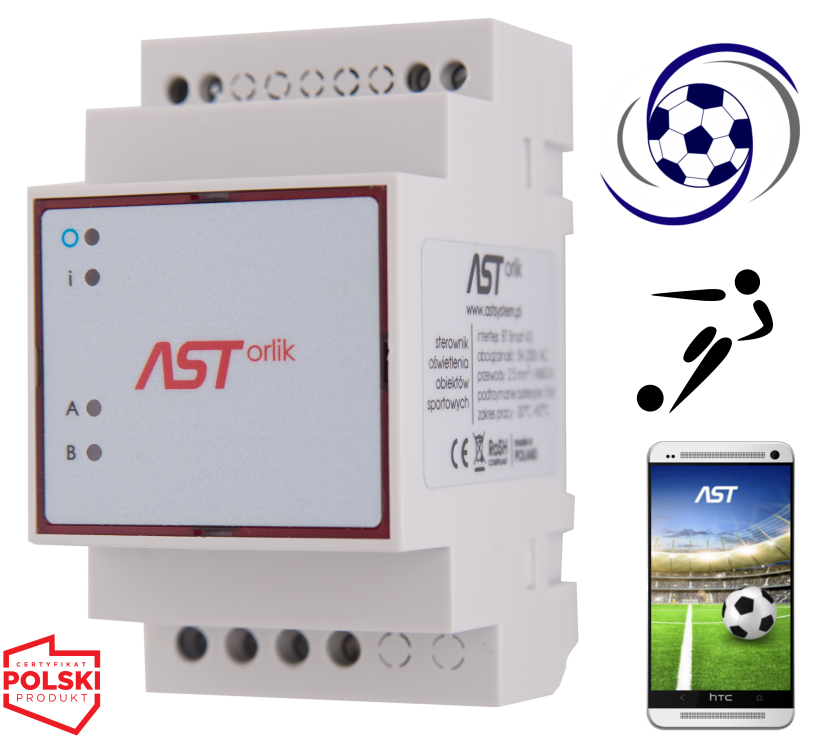

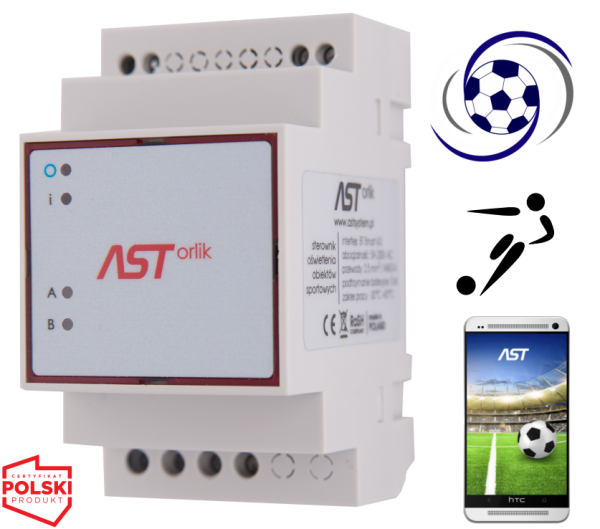

ASTorlik – Lighting controller for sports facilities. AST System once again launches the ASTorlik driver and a specially designed mobile application to control the lighting of sports fields. Thanks to the ASTorlik solution, you do not have to pay for subscriptions as it used to be, now it is enough to download the free application, and you have control over the lighting at your fingertips. The ASTorlik is housed in a 3-module wide DIN rail-mounted enclosure, with two independent outputs, a light circuit trigger input, and built-in Bluetooth. ASTorlik has a built-in GPS receiver, making lighting switching precision ideal.

ASTorlik – a new approach to lighting control
The current solutions for switching on the lighting in sports facilities were implemented by manual switching on, which caused a lack of comfort for pitch users, because the lighting was not switched on at all or in inappropriate hours. Often there was also a situation in which the lighting of sports facilities was switched on for too long, which results in significant costs of energy consumption. The second approach so far was SMS control, which forced subscription fees increasing the cost of maintenance of the facility, and unnecessary formalities. That’s why AST System once again comes up with a solution that eliminates the problems described above. All you need is an ASTorlik driver and a free application and lighting control at your fingertips, while at the same time increasing the comfort of use and reducing electricity consumption costs.

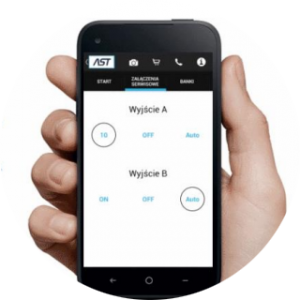

ASTorlik – mobile application to control lighting of sports facilities
From the point of view of the sports facility administrator, ASTorlik application allows to limit the time in which lighting can be switched on, which will translate into significant savings in energy consumption (even up to several thousand zlotys per year). On the other hand, from the user’s point of view, it will give an incredible comfort of using the sports facility, which will be illuminated at the right hours, and the user will know when he can switch on the lighting himself, for how long and how much time is left to switch off the lighting.
ASTorlik properties
- full control and management of ASTorlik with a phone, smartphone, tablet from a mobile application
- intuitive application interface
- free ASTorlik application (to download from GooglePlay)
- Bluetooth encrypted communication
- built-in GPS receiver
- time synchronization according to GPS signal
- two independent units allowing control over two sports facilities
- switching on of sports facilities A and B 30/60/90 minutes (and permanently for the facility administrator)
- possibility of limiting the switching time of A and B circuits
- cooperation with the cascade signal giving the possibility of manual switching on the lighting
ASTorlik technical parameters
- supply voltage 230V AC / 50 Hz
- supply voltage range – 20 % / 10 %
- 2 outputs ( A ) ( B ), independently programmable and controlled, 5 A / 230V AC
- 1 input ( i ), cascade 230V AC
- mechanical parameters of connectors – contact / lift cable 2.5 mm2 / AWG14
- 72 channel GPS receiver
- sensitivity of GPS receiver -167 dBm
- battery life of 5 years (calculated without power supply voltage)
- Bluetooth communication interface
- encrypted bidirectional transmission
- degree of protection IP 20
- operating temperature – 30 °C / 80 °C
- dimensions – width 53 mm, height 95 mm, depth 58 mm
- DIN rail mounting 35 mm
